11.1.2 Shared Services changes

This entry was posted in Shared Services on by (updated 2303 days ago)
My first blog on 11.1.2!!!!! (feels really interesting…..)
I wanted to experiment on this new release for a longtime but couldn’t get a chance to do that (busy schedule :)). But here I’m writing the 1st blog on 11.1.2 Hyperion Shared Services changes…..


The first noticeable change on all Hyperion Products is the look and feel…..(blue and white color of fusion products is clearly visible) then a lot of changes in the folder structure (I think it’ll be difficult for the admins to relate to the previous versions)…..and then the introduction of OHS as HTTP server….(hope this will get changed in the future release).


As you all know 11.1.2 Shared Services is using relational database as the native user directory (openLDAP is history now). Hope that this adds more reliability to the services.


I was interested in knowing what changes are introduced into relational databases (to replicate ….(user information and preferences)…..so I did some experiments on user addition, group addition….so these are the results…..


To capture the changes I enabled auditing on Oracle (with the help of my dear friend Arun Pillai).


Enable Auditing on Oracle


Using SQLPLUS connect to your Oracle database as sysdba. Issue the following command to check the status of Audit.



SQL> SHOW PARAMETER AUDIT

NAME                                 TYPE        VALUE
———————————— ———– ——————————
audit_file_dest                      string      F:ORACLEPRODUCT10.2.0ADMIN
                                                 CERAHYPADUMP
audit_sys_operations                 boolean     FALSE
audit_trail                          string      NONE

If the audit_trail is set to none, issue the following SQLPLUS command to enable it.

SQL> ALTER SYSTEM SET audit_trail=db SCOPE=SPFILE;

System altered.

Now we need to define auditing for the Shared Services database user. My Shared Services user is called as HSSADMIN.

AUDIT ALL BY HSSADMIN BY ACCESS;
AUDIT SELECT TABLE, UPDATE TABLE, INSERT TABLE, DELETE TABLE BY HSSADMIN BY ACCESS;
AUDIT EXECUTE PROCEDURE BY HSSADMIN BY ACCESS;

So now we have all the setup to capture the changes made by Shared Services (when a user is added)

Restart the database to start auditing…. (remember to turn this feature off after the experiment)

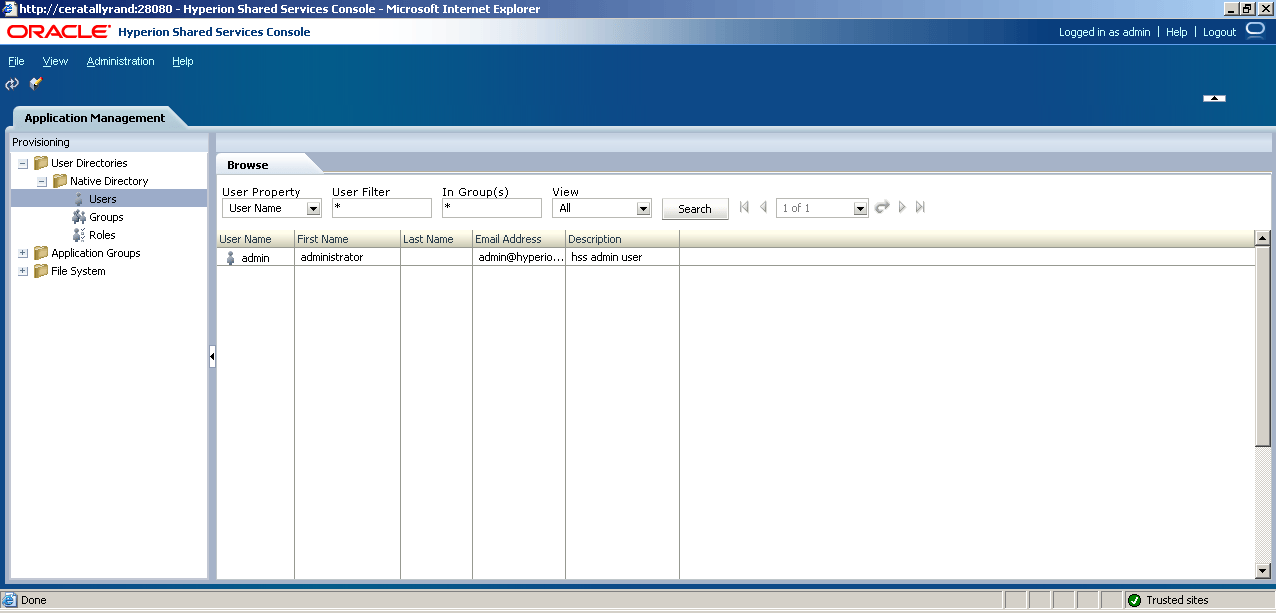

Now I’m going to add a user in Shared Services.
                                                                    before

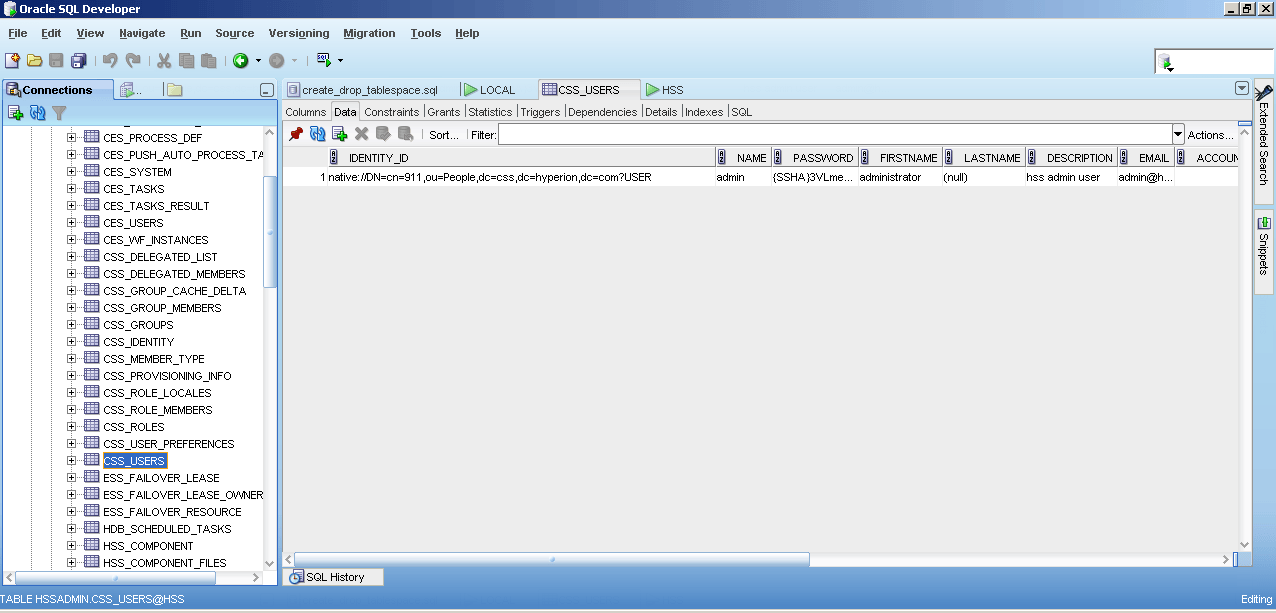

CSS_USERS is the table that stores the Native user information

                                                                   before

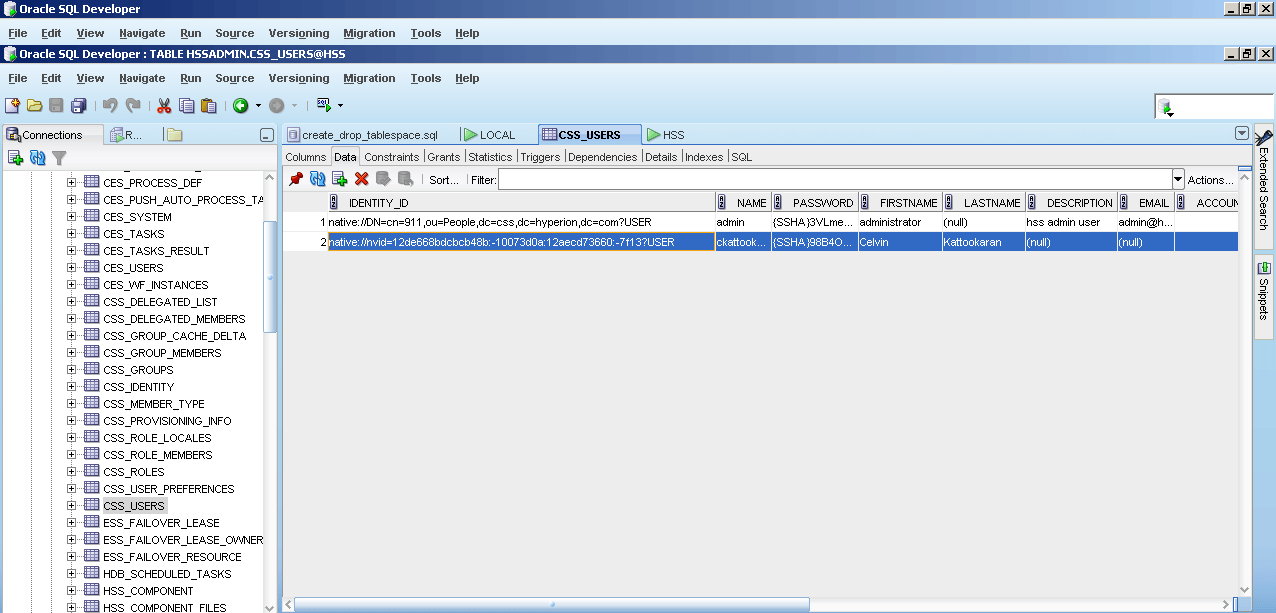

CSS_USERS table after the addition

A closer look reveals that it still follows many of the openLDAP conventions
?USER at the end for the user…
ou=People,dc=css,dc=hyperion,dc=com structure.

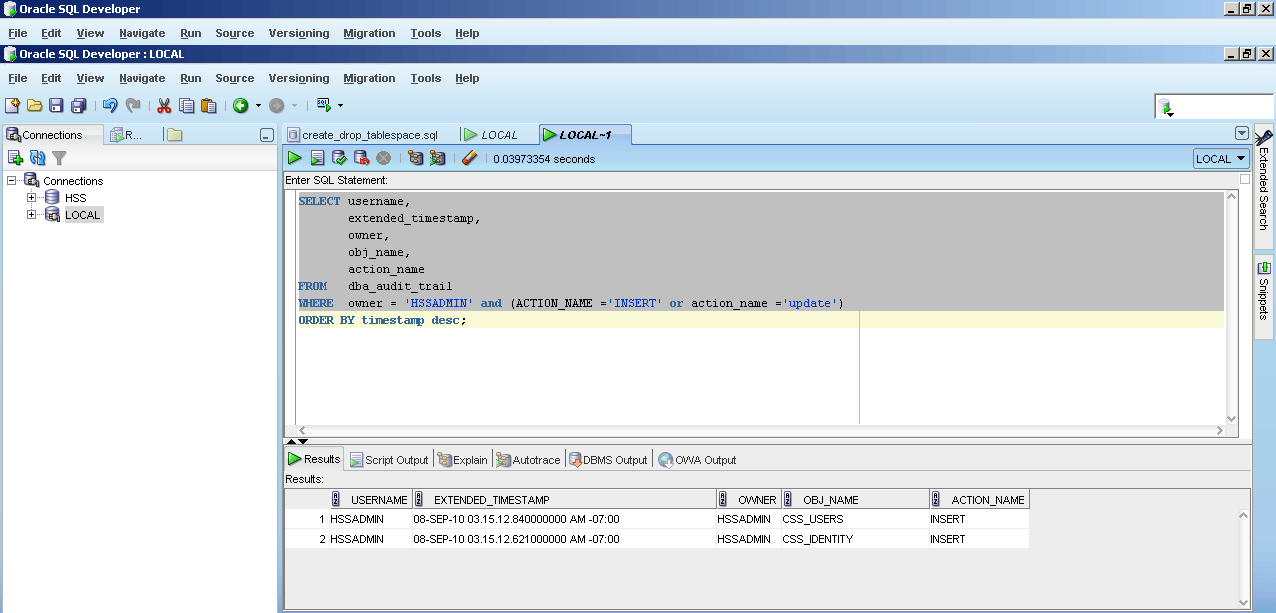

I was interested in knowing whether any other table got updated. So I ran the below query to check the changes.

SELECT username,
       extended_timestamp,
       owner,
       obj_name,
       action_name
FROM   dba_audit_trail
WHERE  owner = ‘HSSADMIN’ and (ACTION_NAME =’INSERT’ or ACTION_NAME  =’UPDATE’)
ORDER BY timestamp;

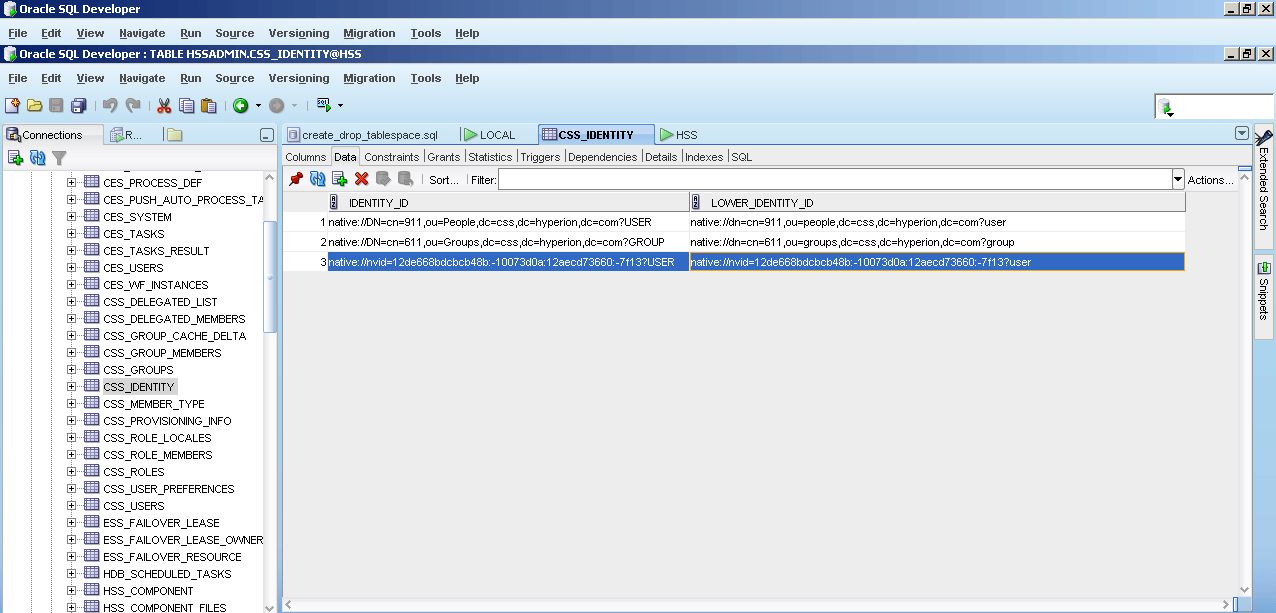

and found that CSS_IDENTITY table will also get updated when you add a user.

This table contains the IDENTITY_ID and the LOWER_IDENTITY_ID  of all users and groups.

For a group

When you add group there are three tables that gets changed.
  • CSS_GROUPS
  • CSS_IDENTITY
  • CSS_GROUP_CACHE_DELTA


When you add a group to a group or a user to a group then in addition to the above 3 tables CSS_GROUP_MEMBERS table also gets updated.

There are many new tables added to Shared Services repository (Essbase clustering information and Smart View Shared Connection information comes from here)

Will post more details on 11.1.2 as I progress with my experiments with the new software.
